Crane fork with automatic balancing

Description

Self-balancing fork for tower cranes, truck mounted cranes and mobile cranes.

Available versions:

• Capacity: 1500kg
• Capacity: 2000kg
• Capacity: 2500kg

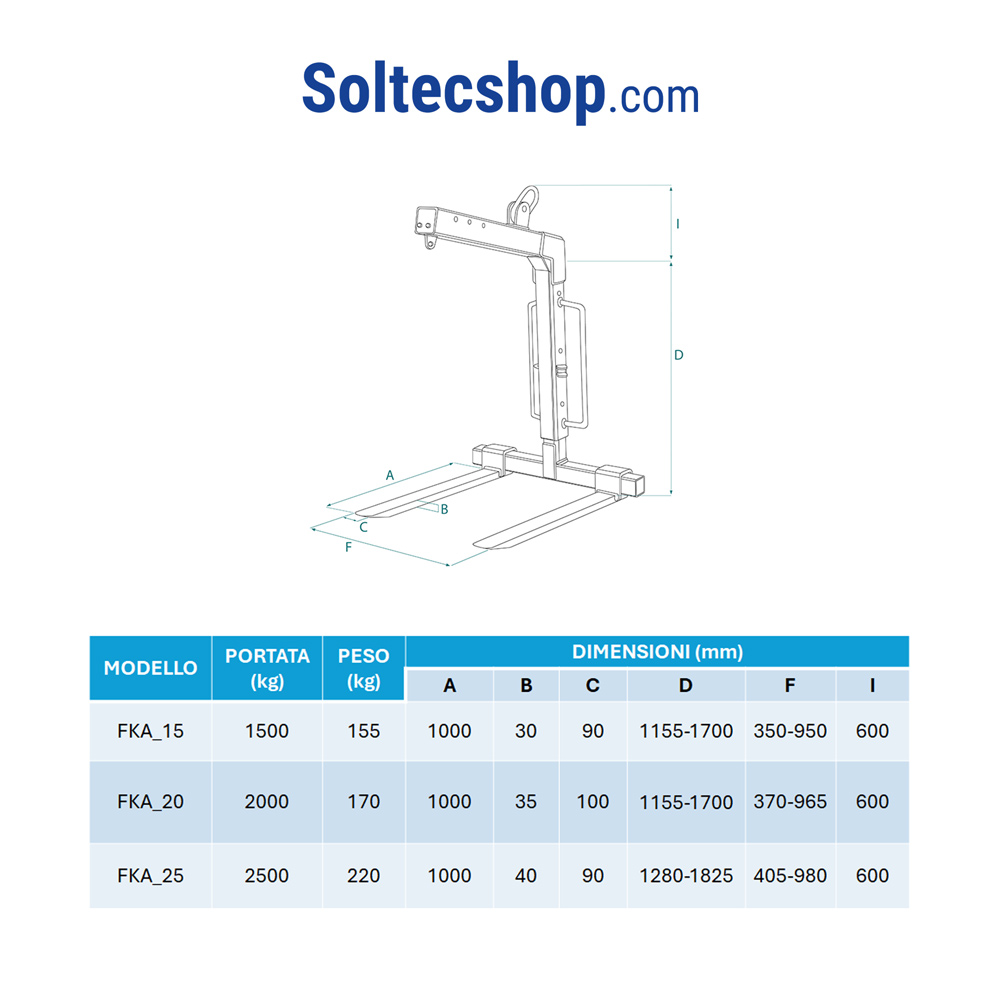

The fork with automatic balancing is adjustable in height and width and is one of the most requested models on the market. There are models of different capacities and sizes. This fork allows you to lift and move goods of various types and can be used in multiple contexts such as, for example, in warehouses or on construction sites using crane trucks or tower cranes. The suspension ring is activated thanks to a spring and always coincides with the center of gravity of the load. The device has easy height adjustment and this allows to adapt to the size of the load and the pallet. The automatic balancing function operates with a minimum load equal to 25% of the fork’s nominal capacity. Inside the package you will also find a chain with which you can harness the load.

The forks are built and tested according to the UNI EN 13155, UNI EN ISO 12100, UNI EN 349, UNI ISO 8686 and UNI 10204 standards. Our products comply with all current European Union regulations, both in the production phase and in the mandatory testing phase. Upon delivery of the goods, you will receive the instruction manual with all the certifications attesting the quality and safety of our product.
