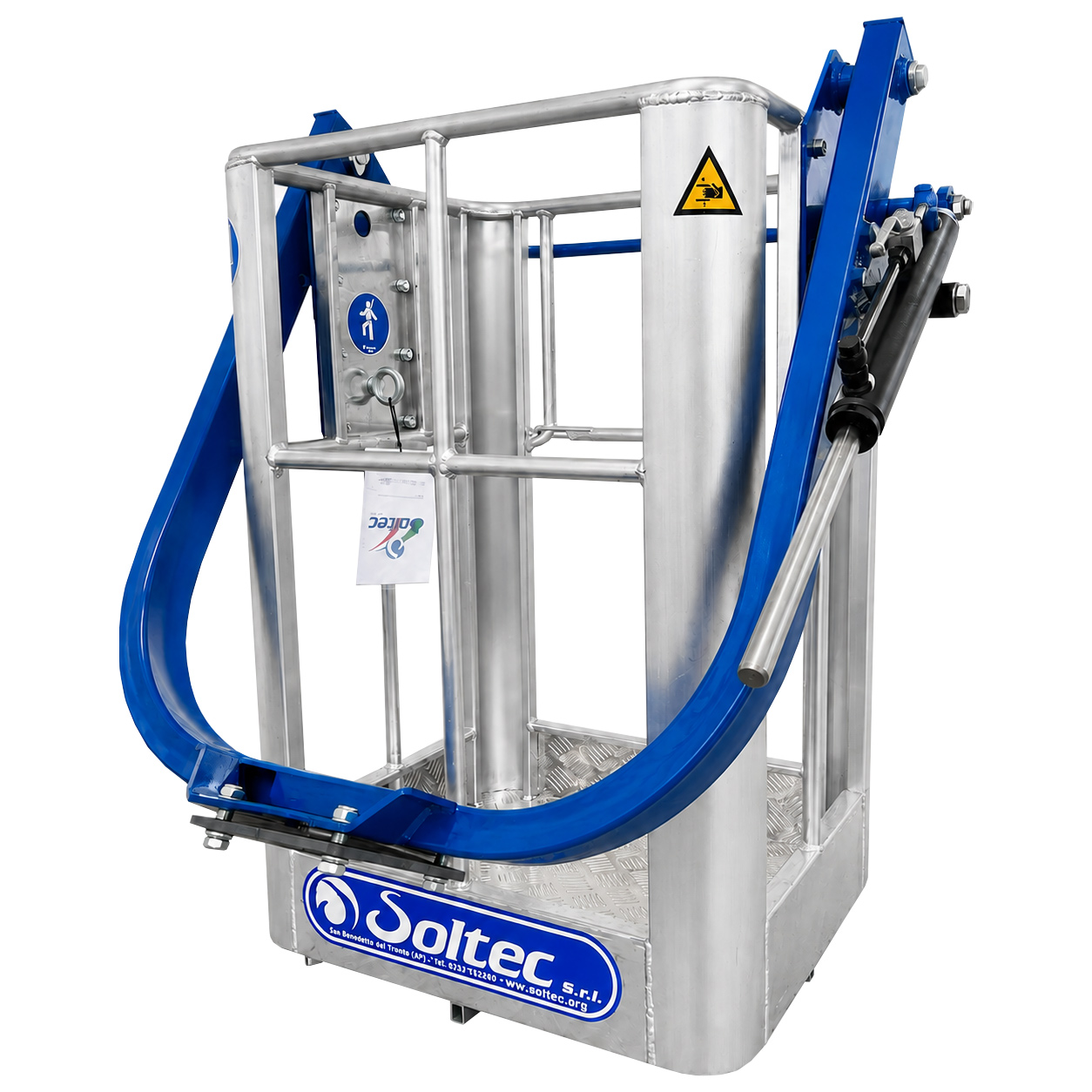

Crane man basket 1 person – 120 kg (264,555 lbs)
- Aluminum basket material
- Arm in iron
- Gravity levelling
- Installed on the extensions of the crane
- Weight 76 kg;

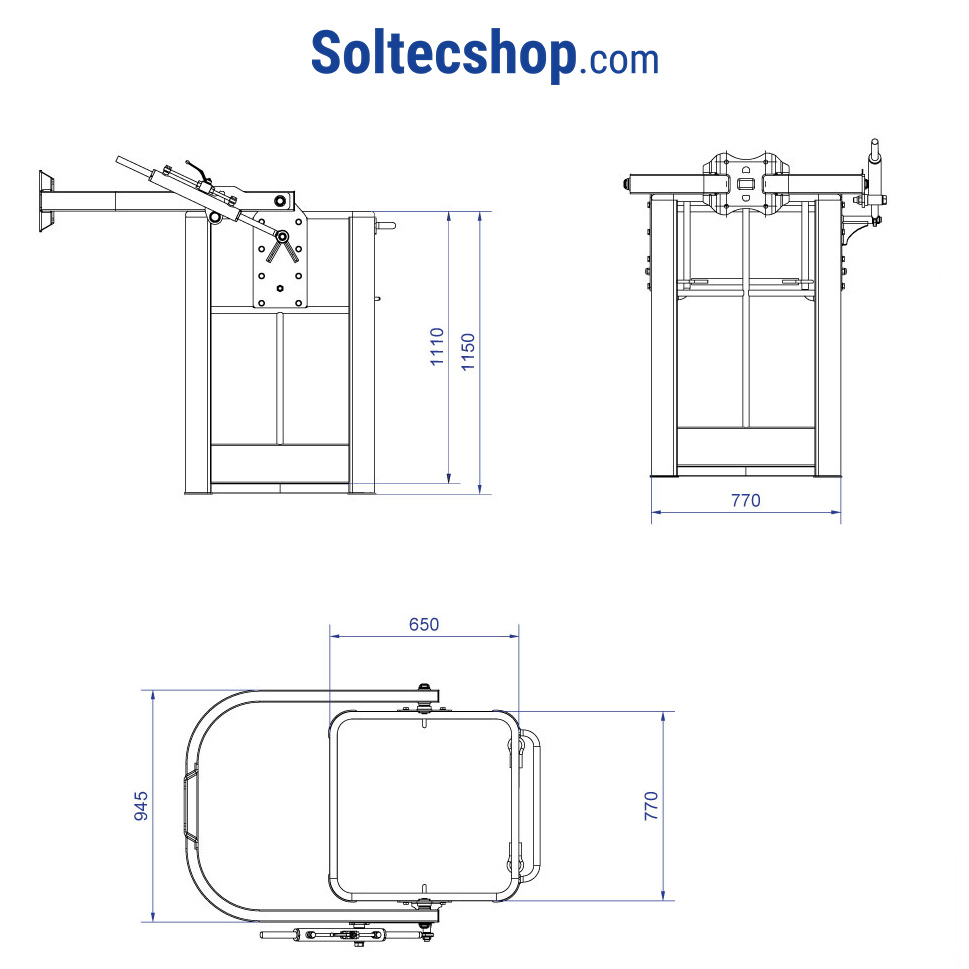

- Dimensions 770x650x1150h mm;
- The maximum capacity is 120 kg;
- Very resistant model
- Supplied with an anchor plate
Data sheet CAQ 1
In this short video you can see how the man basket works.
The operator man basket was designed by soltec engineers after more than 25 years of experience. The man basket has 1 very spacious front entrance. Thanks to the lifting of an easily sliding and light aluminum bar, the operator can easily enter and exit the basket. It is bolted to the laterally bent iron arm. The unique design allows you to lift the basket up to an angle of 87 ° SOLTEC design.
The perforated plate welded on the bent arm must be connected with an adaptation that is not included in the KIT.
Each adaptation is different and it only depends on the type of crane and its extensions. Adaptations are customized and also supplied by soltec on request.
Moreover this platform for hydraulic cranes can be installed if you have at least a capacity of 350kg at the tip. If this is not possible, other strategies must be evaluated.
The levelling is carried out by a valve on the basket’s piston. Whenever the operator opens the valve, gravity levelling occurs. After that, when the operator closes the valve, the levelling is stopped and the basket does not move, in this way the operator can work safely.
SAFETY STANDARDS AND CERTIFICATION
The basket for cranes complies with the EN280: 2015 standard by adding the leveling kit by SOLTEC to the purchase. This kit regulates the automatic levelling of the basket when the inclination exceeds 5 °.

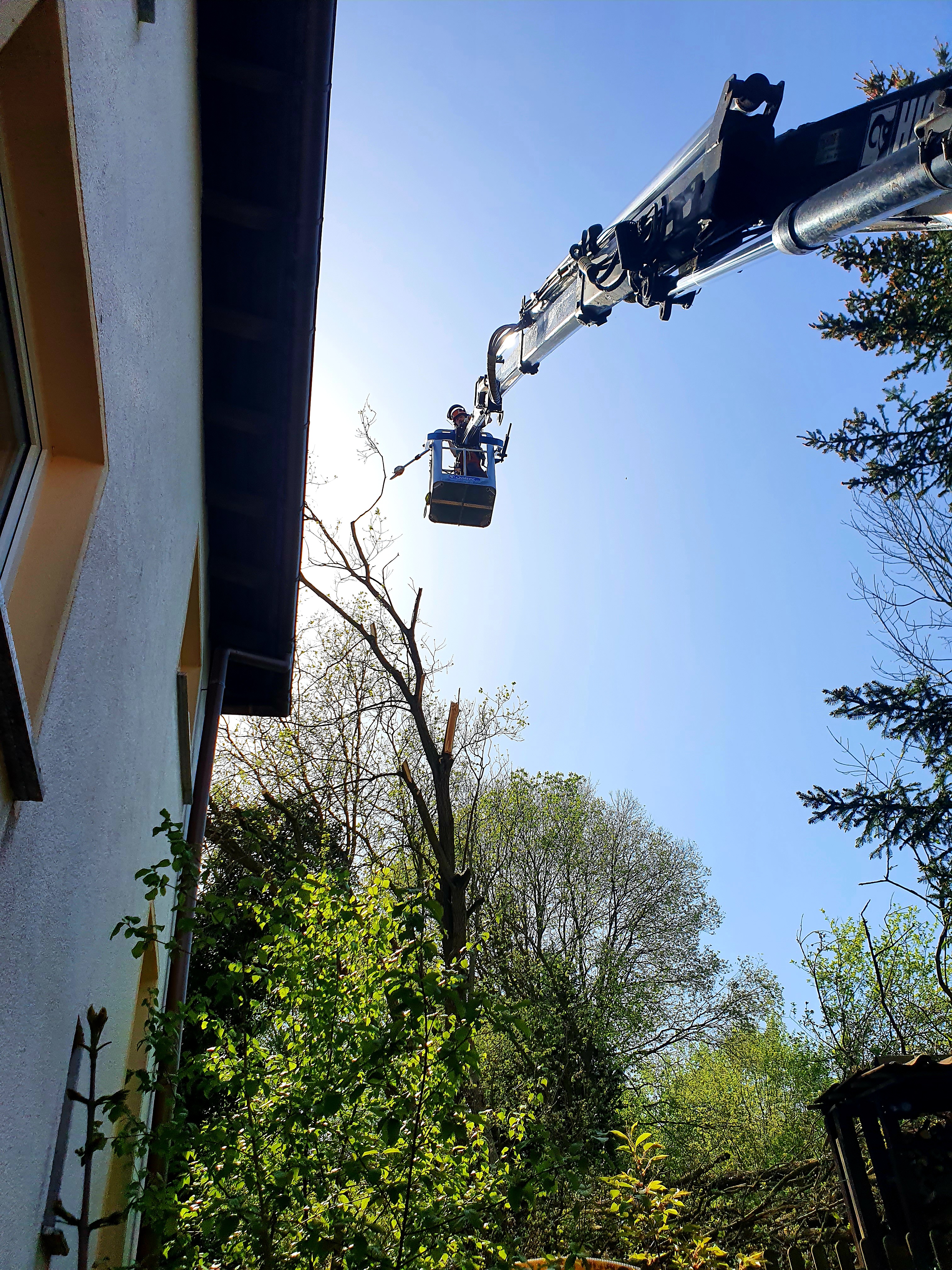

The single operator crane basket can be suitable for small and medium-sized cranes that are used occasionally.
All our products are certified and guaranteed.
Soltec Srl , specialized in the lifting sector for more than 30 years.
This basket is compatible with all hydraulics cranes and in particular with Effer, Palfinger, Fassi,Hiab, Bonfiglioli, Ferrari, PM and DN cranes.
