Self-Leveling Platform for Hydraulic Cranes DRAGONFLY

Description

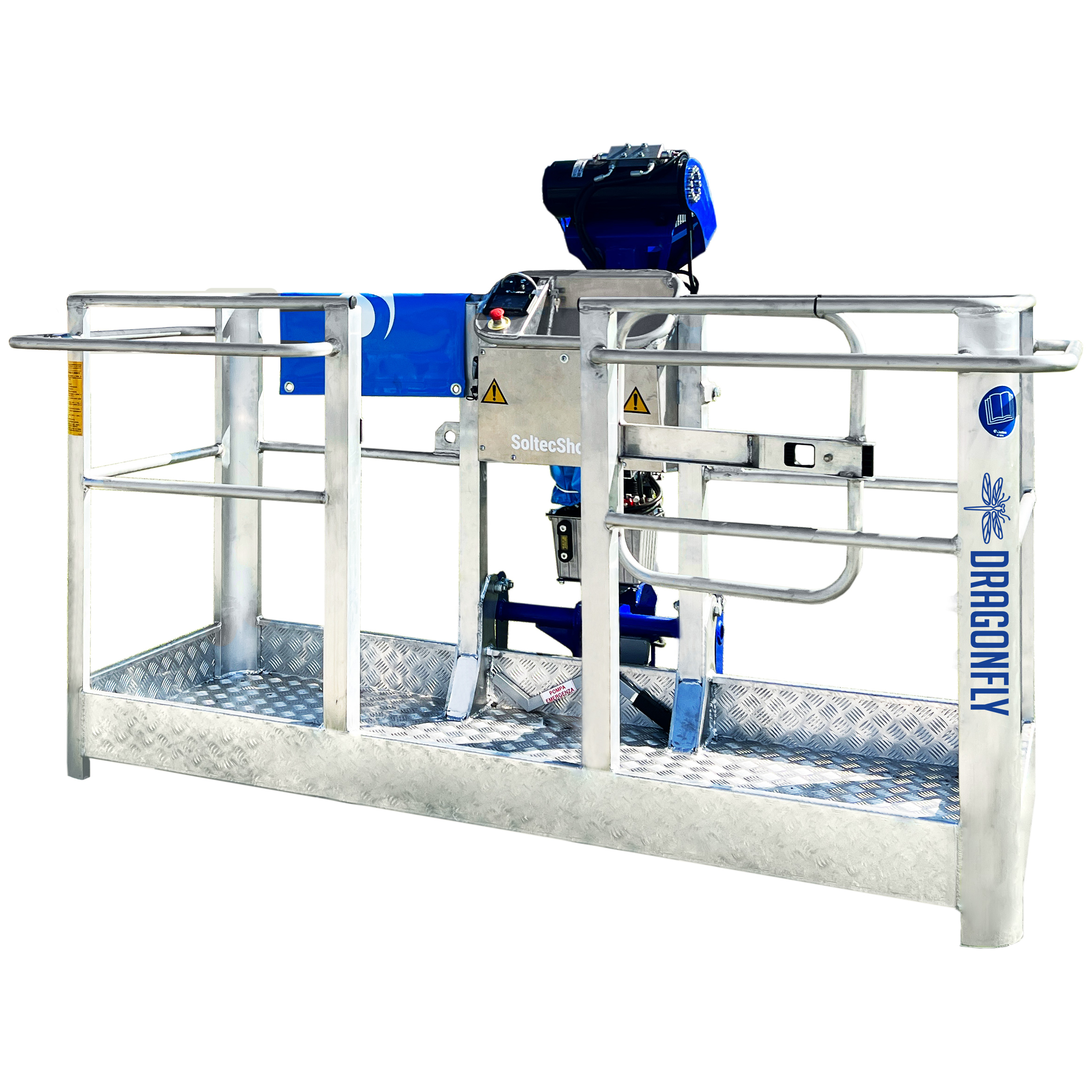

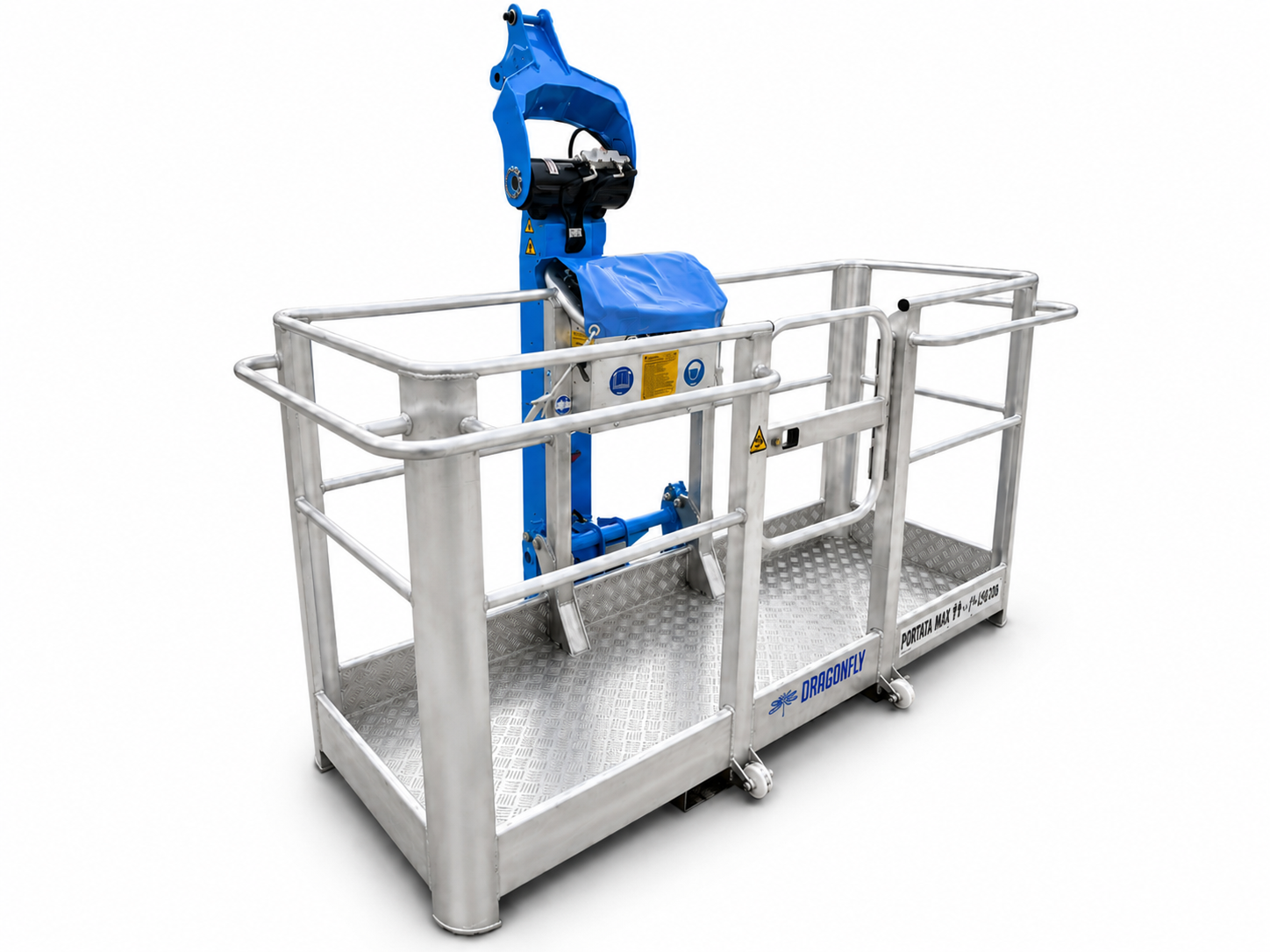

DRAGONFLY Self-Leveling Platform for Hydraulic Cranes – for 2 operators

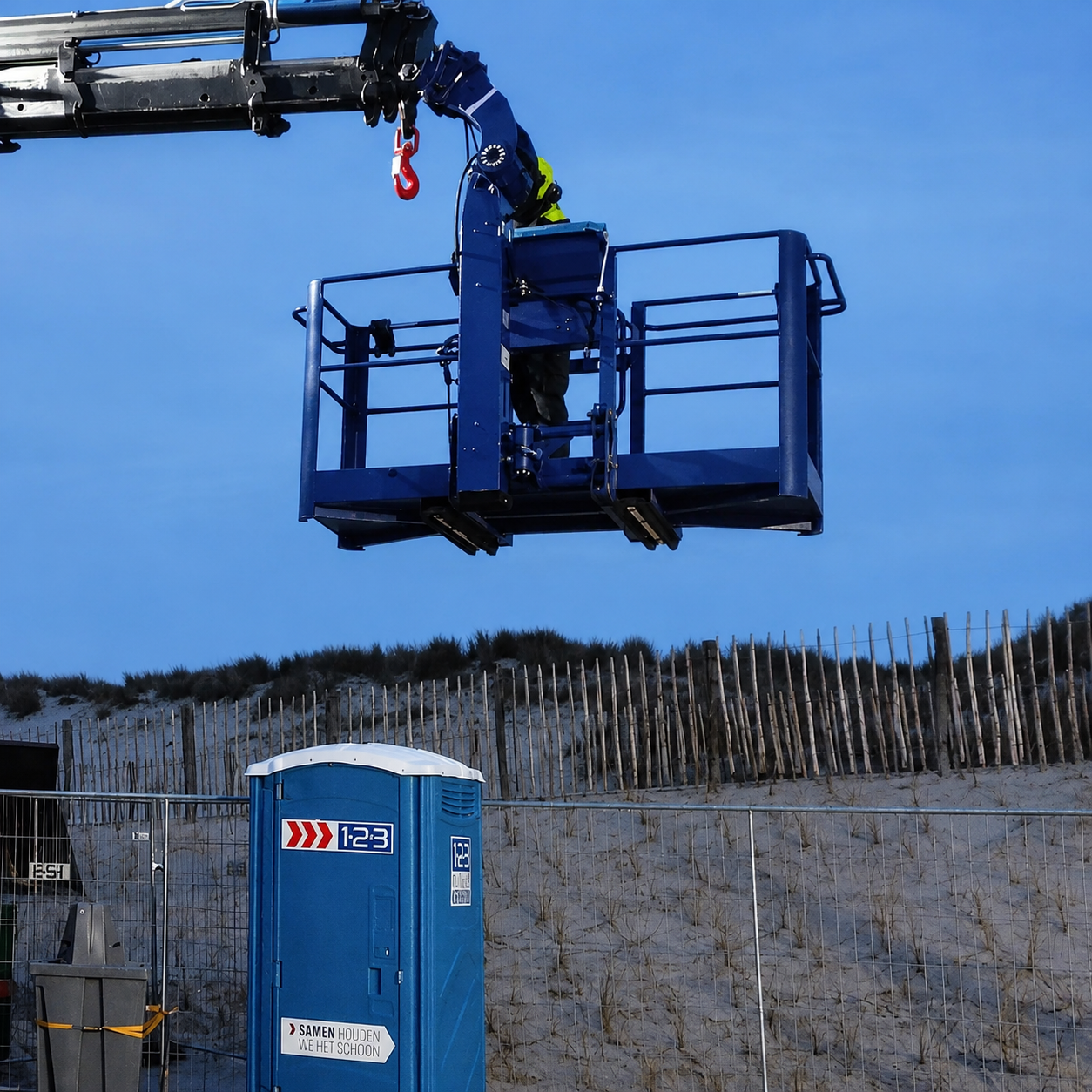

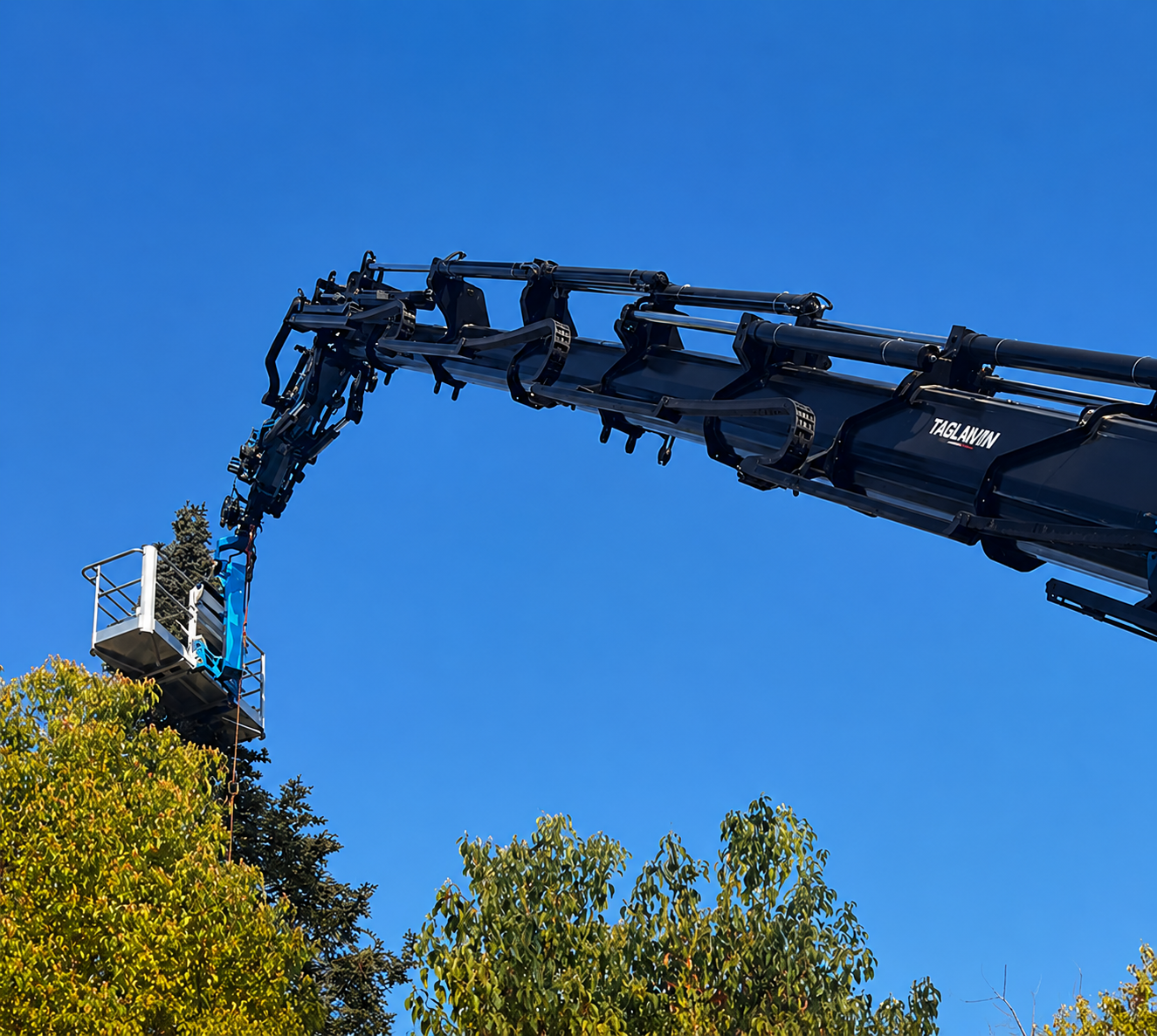

The DRAGONFLY is a self-leveling platform for hydraulic cranes, designed to lift two operators to working heights. It is an electro-hydraulic platform powered by Li-Ion batteries, designed to offer greater autonomy, safety, and convenience during work operations.

The platform is available with a load capacity of 250 kg and a rotation range of 180° to 340°, depending on the configuration selected. The structure combines sturdiness and lightness, with a total weight of approximately 240 kg.

Main features

• Type: Self-leveling electro-hydraulic platform
• Power Source: Li-Ion batteries
• Number of operators: 2 people
• Load capacity: 250 kg
• Rotation: 180° – 340°
• LCD Screen: 5-inch display showing alarms and operations
• Anchoring system: designed for forklifts
• Wheeled system: for moving the platform on the truck bed
• Weight detection system: by SOLTEC with 2 parallelogram load cells
• Motors: hydraulic rotary motors
• Emergency Pump: Manual
• Automatic leveling: System activates at ±5° / ±10°

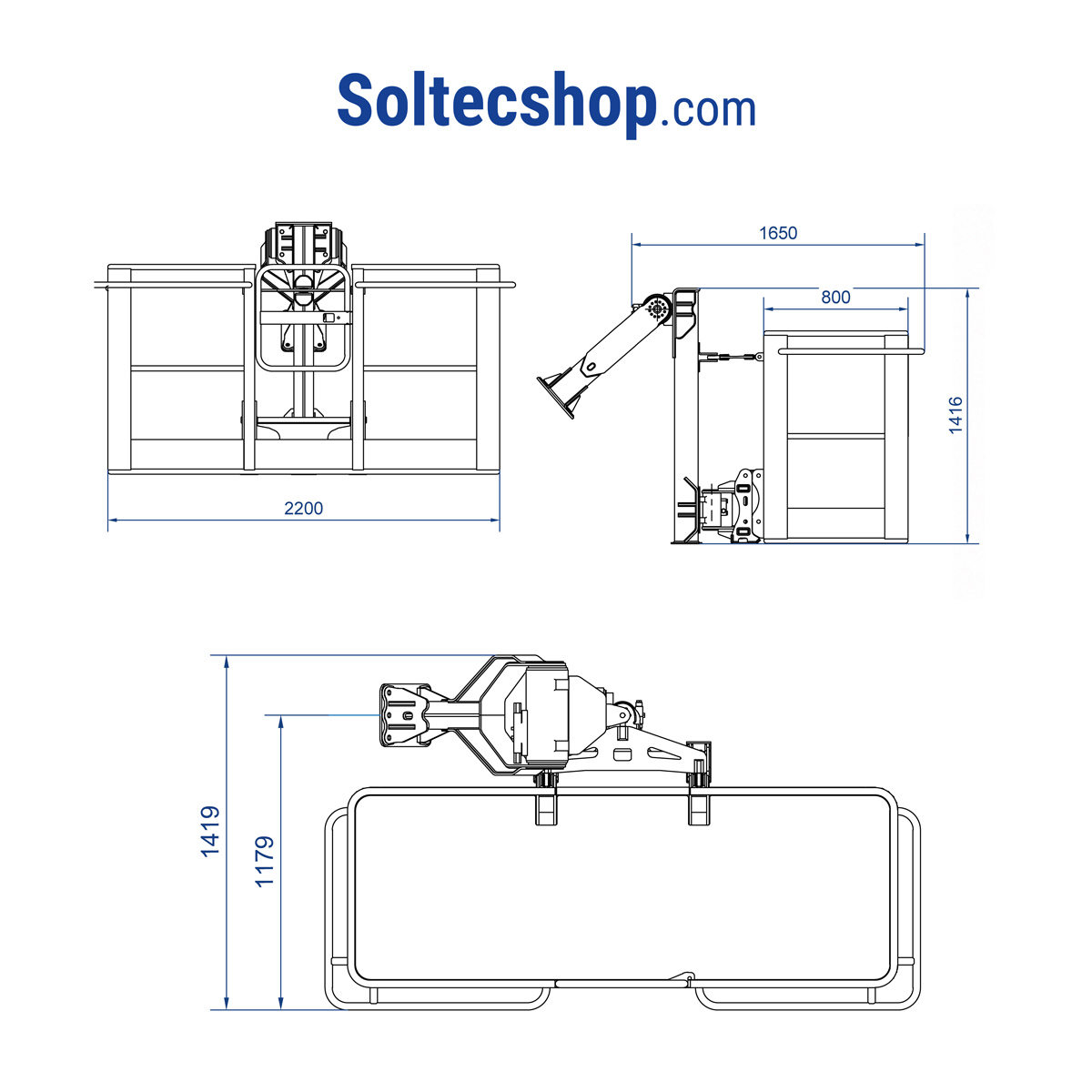

Dimensions and Weight

• Length: 2200 mm
• Width: 900 mm
• Floor plan: 1.9 m²
• Parapet height: 1150 mm
• Weight: 240 kg
• Load capacity: 250 kg

Why choose the Soltec DRAGONFLY platform?

The DRAGONFLY self-leveling platform gives operators a professional, compact, and technologically advanced solution for working at height with hydraulic cranes. Moreover, the electro-hydraulic system with Li-Ion batteries provides greater autonomy, while the automatic leveling system keeps the platform stable during operations.

The SOLTEC weight detection system uses two parallelogram load cells to continuously monitor the platform load. In addition, the 5-inch LCD screen displays alarms and operating instructions, making the system easier to operate and monitor.

Furthermore, SOLTEC manufactures every DRAGONFLY platform in compliance with the applicable European Union regulations and carries out all mandatory tests before delivery. Finally, SOLTEC supplies each platform with the instruction manual and all the required technical documentation.

For more than 30 years, SOLTEC Srl has designed and manufactured work baskets and operator platforms for hydraulic cranes, including solutions compatible with Effer, Palfinger, Fassi, Copma, and Ferrari cranes.
