Basket for hydraulic cranes with rotation

Description

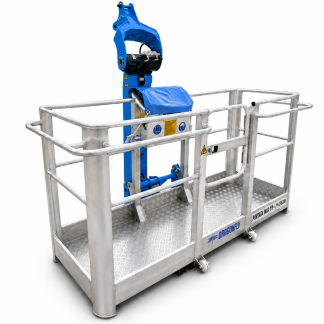

Basket for hydraulic cranes with rotation for 2 people load 200 kg

This basket shows the following features:

• Rotation 360 °
• Aluminum basket material
• Arm material in iron
• Gravity leveling
• Applicable on crane arms
• The permitted load is 200 kg; 440,925 lbs

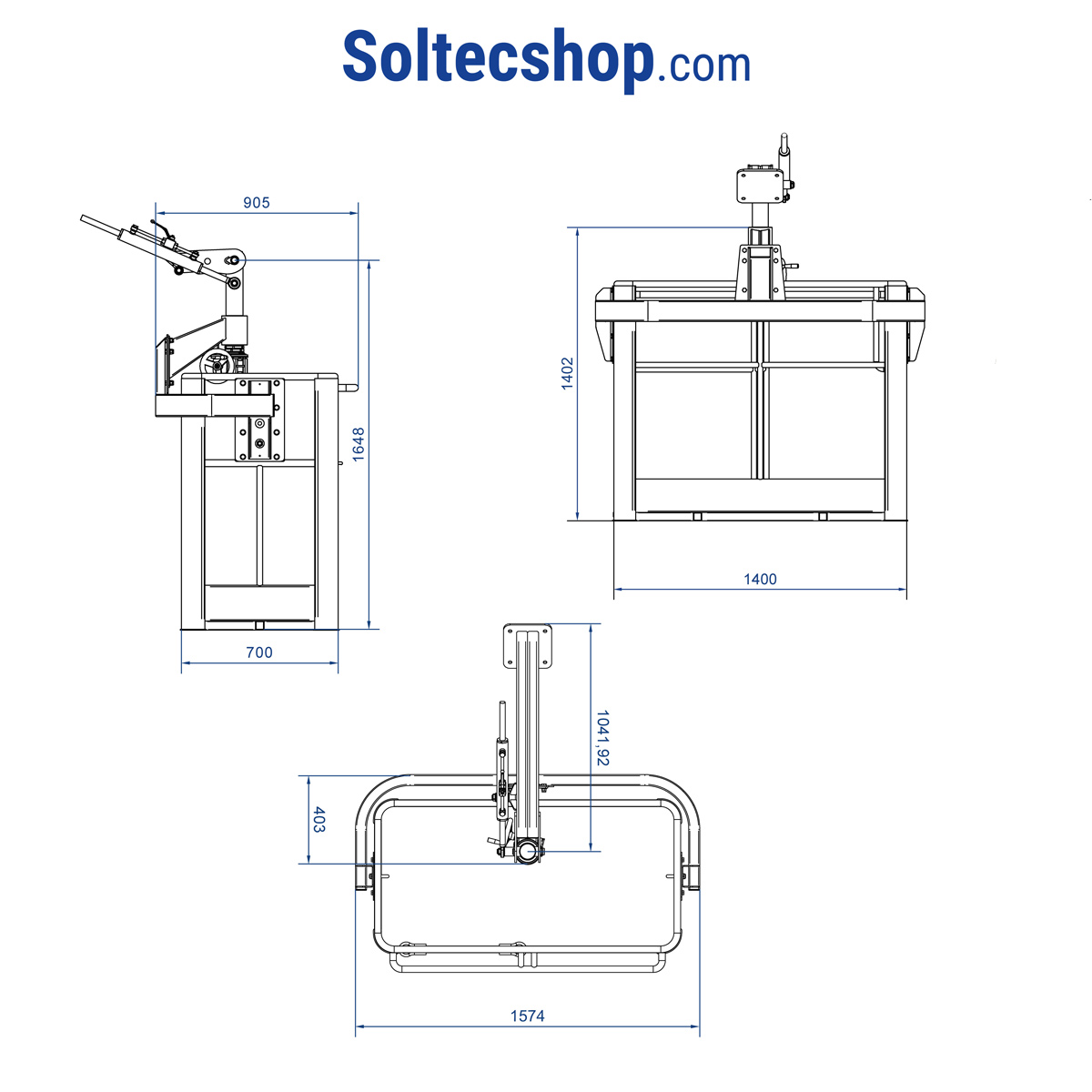

• Dimensions: 70 × 140 × 115 cm; 27,55 x 55,11 x  45,27 inch
• Plant 1400 × 700 mm; 55,11 x 27,55 inch
• Engineered for 2 people
• With an anchor plate

Details and operation:

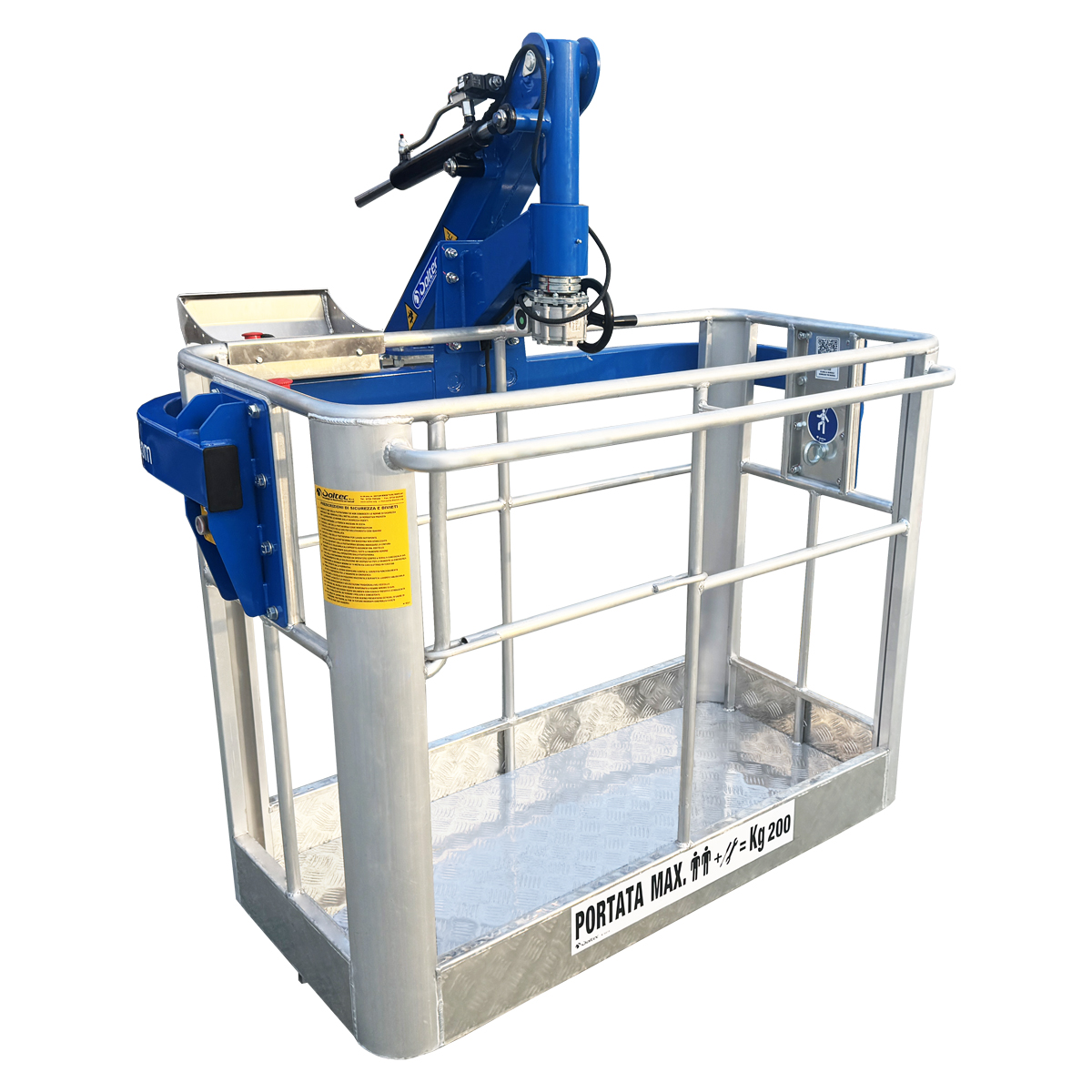

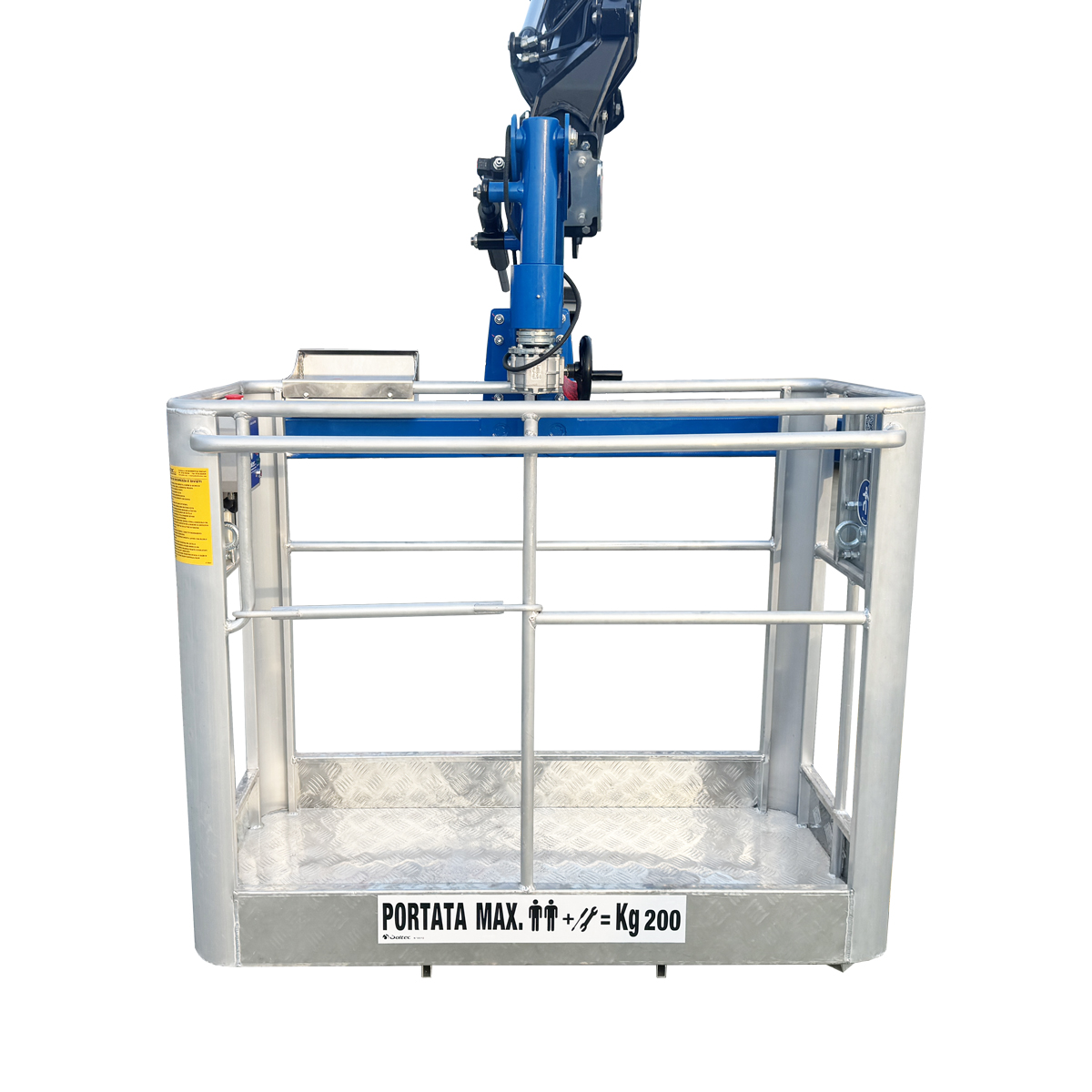

The basket for hydraulic cranes with rotation has 2 very wide front entrances with the lifting of an easily sliding and light aluminum bar. Two operators can enter and exit simultaneously.  Our product is bolted to the bent iron arm. The arm is connected to the rotation block. The very solid and fluid block allows the rotation of the basket. It is anchored to a tube with a 4-hole plate welded at the end which is not included in the product. Then the plate must be connected to an adaptation which is not included in the basket.
Each adaptation is different and it only depends on the type of crane and its extensions.

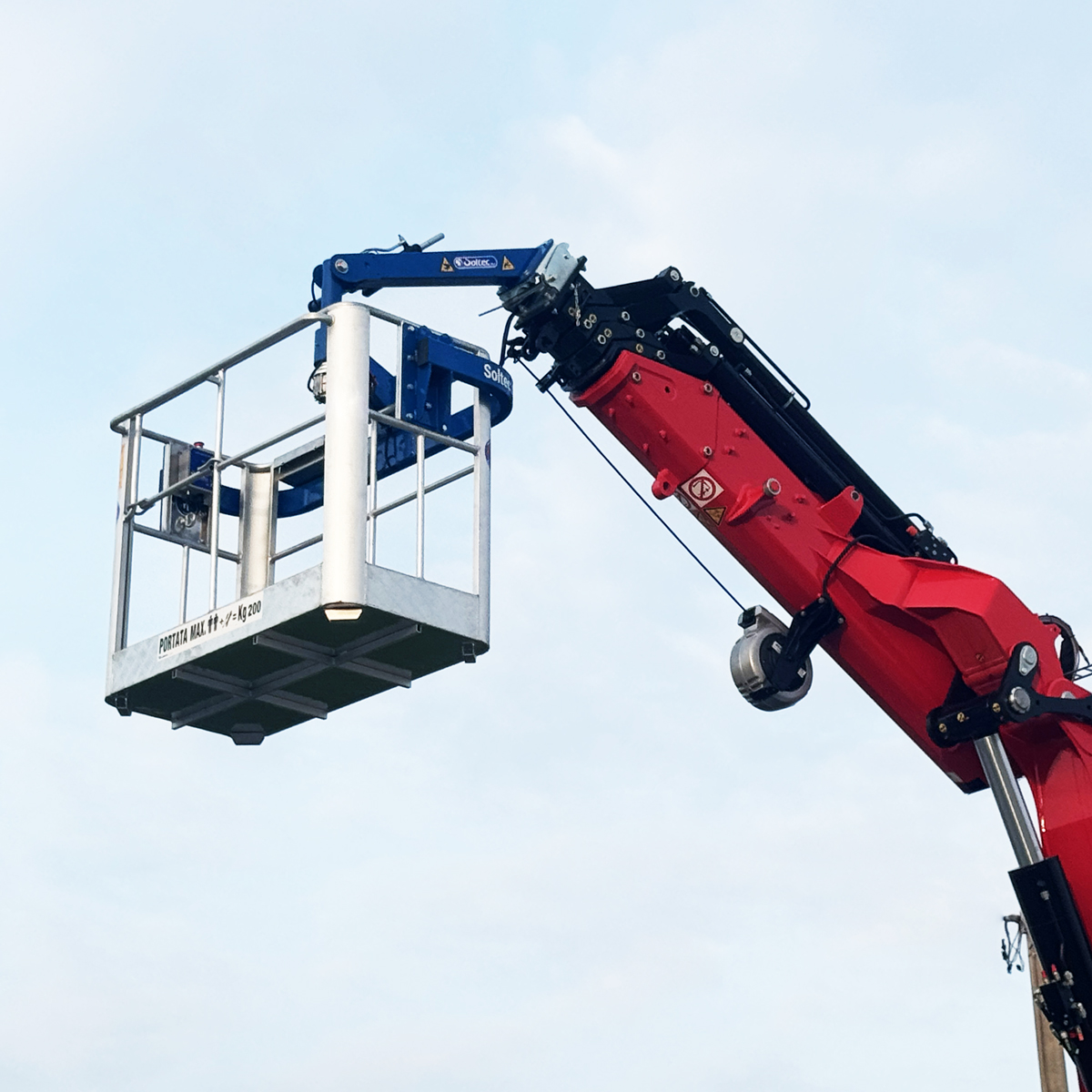

This platform for hydraulic cranes can be installed if you have at least 520 kg of tip capacity. If this is not your case, other strategies must be evaluated or the basket for single operator cranes must be viewed.

The levelling is carried out by a valve on the basket’s piston. Whenever the operator opens the valve, there will be a gravity levelling. Whenever the operator closes the valve, the levelling is stopped, the basket does not move and the operator can work safely.

Our basket for hydraulic cranes with rotation complies with the EN280: 2015 standard by adding to the purchase the leveling kit by Soltec which regulates the leveling.

Visit this page to discover the accessory for remote control   on the man basket

Engineering:

Our operator basket was designed by soltec engineers thanks to 25 years of experience. Soltec offers the opportunity to customize the man baskets according to the customer’s needs, always considering the European regulations. Soltec Srl , specialized in the lifting sector for more than 30 years.

All our products are certified and guaranteed. Marca Soltec Srl , specialized in the lifting sector for more than 30 years.

This basket is compatible with all hydraulics cranes and in particular with  Effer, Palfinger, Fassi,Hiab, Bonfiglioli, Ferrari, PM and DN cranes.

All baskets for hydraulic cranes. Visit www.soltec.org for more information.
