Crane Man Basket 2 people capacity load 200 kg
- Man basket material: Aluminum
- Arm material : iron
- Gravity levelling
- Applicable on crane arms
- The permitted load is 200 kg: 440,925 lbs

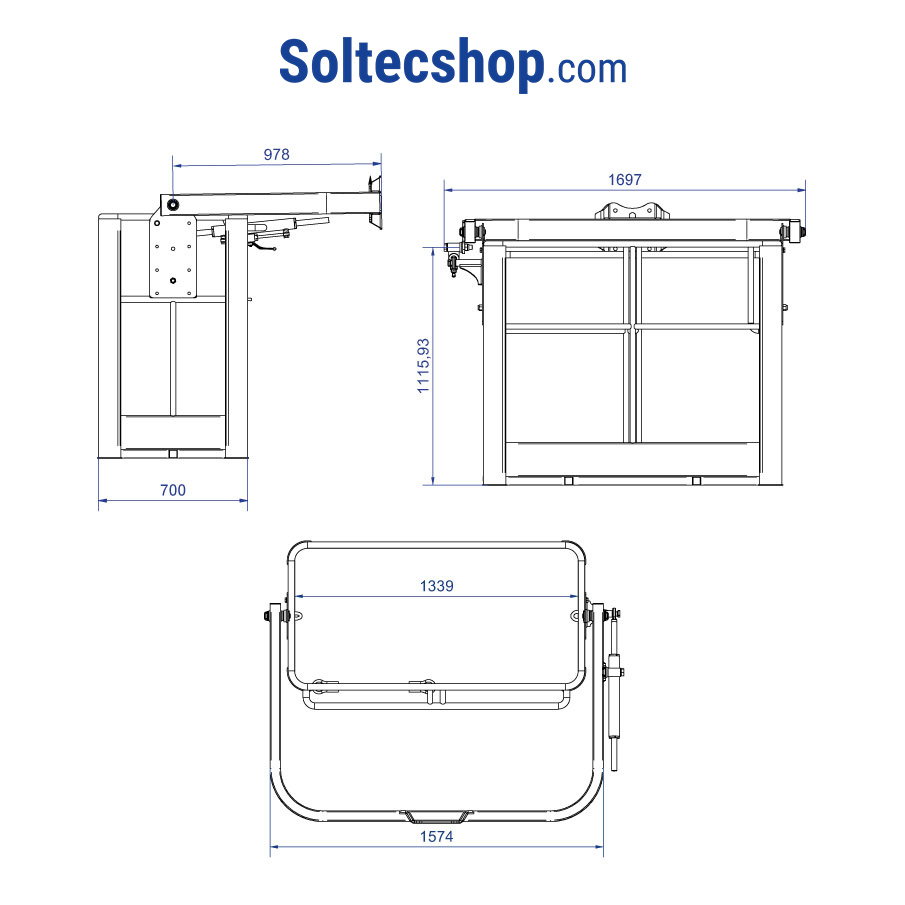

- Dimensions: 70 × 140 × 115 cm: 27,55x 55,11x 45,27 inch
- Weight: 97 kg: 213 lbs
Description and Operation:
The Man basket has 2 very wide front entrances with lifting of an easily sliding and light aluminum bar. The two operators can enter and exit simultaneously. Our product is bolted to a press-folded arm. The arm allows anchoring to the plate with 4 holes included in the product. Then the plate must be connected with an adaptation not included in the basket. Each adaptation is different and it depends exclusively on the type of crane and the number of extensions.
The livelling is carried out by valve on the basket’s piston. Whenever the valve is opened, the result will be a gravity livelling. Whenever the operator closes the valve, the livelling is stopped and the basket does not move so that the operator can work safely.
Crane Man Basket 2 people for hydraulic cranes can be installed if you have at least a capacity of 500 kg at the tip. If this is not the case, other strategies must be evaluated or the basket for single operator cranes must be viewed.
SAFETY AND CERTIFICATION
Our crane basket complies with the EN280: 2015 standard by adding the levelling kit by soltec to the purchase, which regulates the levelling. The crane basket is also available with rotation. The soltec offers the opportunity to customize the baskets according to the customer’s needs, always considering compliance with the regulations. Soltec Srl , specialized in the lifting sector for more than 30 years. The operator basket was designed by soltec engineers after more than 25 years of experience.
All our products are certified and guaranteed. Marca Soltec Srl , specialized in the lifting sector for more than 30 years.
This basket is compatible with all hydraulics cranes and in particular with Effer, Palfinger, Fassi,Hiab, Bonfiglioli, Ferrari, PM and DN cranes.
All baskets for hydraulic cranes. Visit www.soltec.org for more information.
